Rigging Hardware 304 Stainless Steel European Type D Shackles

Product Description

European shackle are forged with high-quality carbon structural steel or alloy structural steel and heat treated,with small volume and high strength;The test load is 2 times of the ultimate working load and the breaking load is 4 times of the
ultimate working load.American Standard shackles have 1/4-4-1/2,ranging from 2 tons to 200 tons,with a total of more than 20 specifications.American Standard shackles are divided into four forms:210,2150,209,2130.

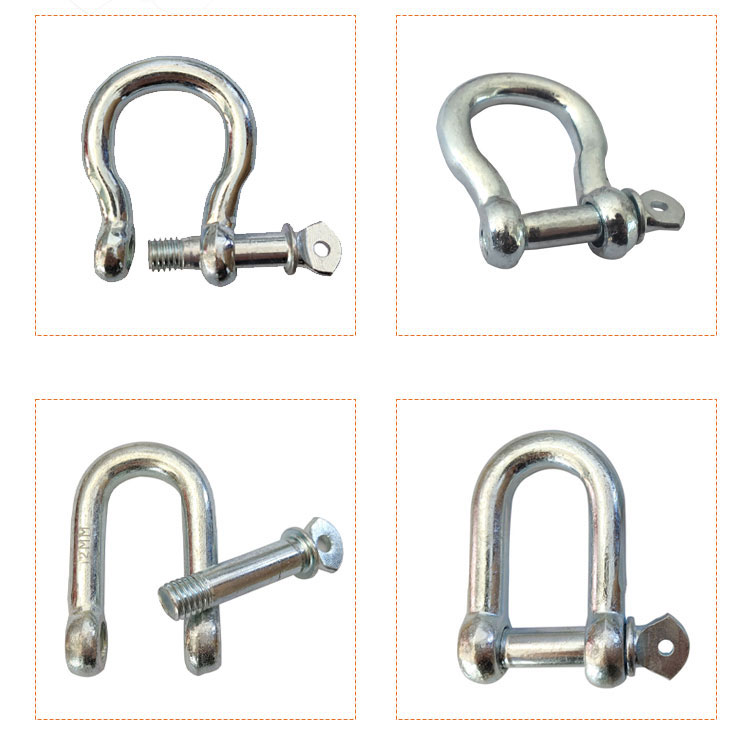

Product Display

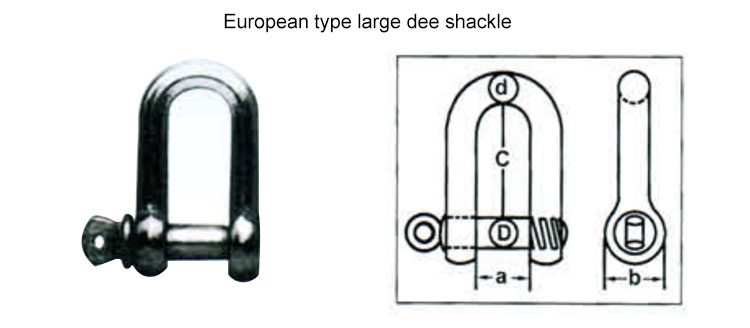

Parameter

SWL Kg	D mm	d mm	a mm	C mm	b mm	Weight per 100pcs
80	5	5	10	19	11	1.9
100	6	6	13	25	14	3.4
200	8	8	16	32	18	7
320	10	10	19	38	20	13
520	12	12	25	51	26	24
800	16	16	32	64	33	50
1100	20	20	38	76	40	80
1500	22	22	44	89	50	130
2100	25	25	51	100	57	200
3000	28	28	57	115	68	300
3500	32	32	64	127	73	430
5000	38	38	76	152	85	675
7000	45	45	90	180	96	1250
8000	50	50	102	200	108	1750

SWL Kg	D mm	d mm	a mm	C mm	b mm	Weight per 100pcs
80	5	5	10	19	11	1.9
100	6	6	13	25	14	3.4
200	8	8	16	32	18	7
320	10	10	19	38	20	13
520	12	12	25	51	26	24
800	16	16	32	64	33	50
1100	20	20	38	76	40	80
1500	22	22	44	89	50	130
2100	25	25	51	100	57	200
3000	28	28	57	115	68	300
3500	32	32	64	127	73	430
5000	38	38	76	152	85	675
7000	45	45	90	180	96	1250
8000	50	50	102	200	108	1750

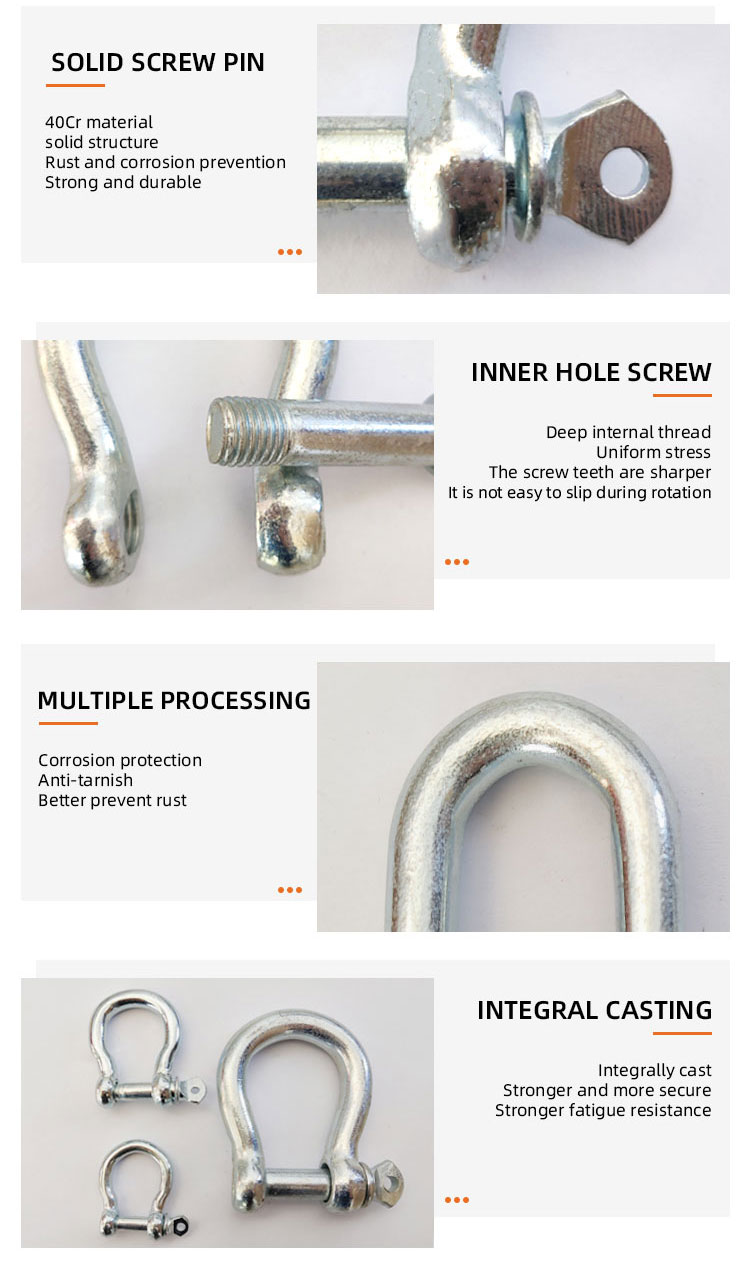

Product Details

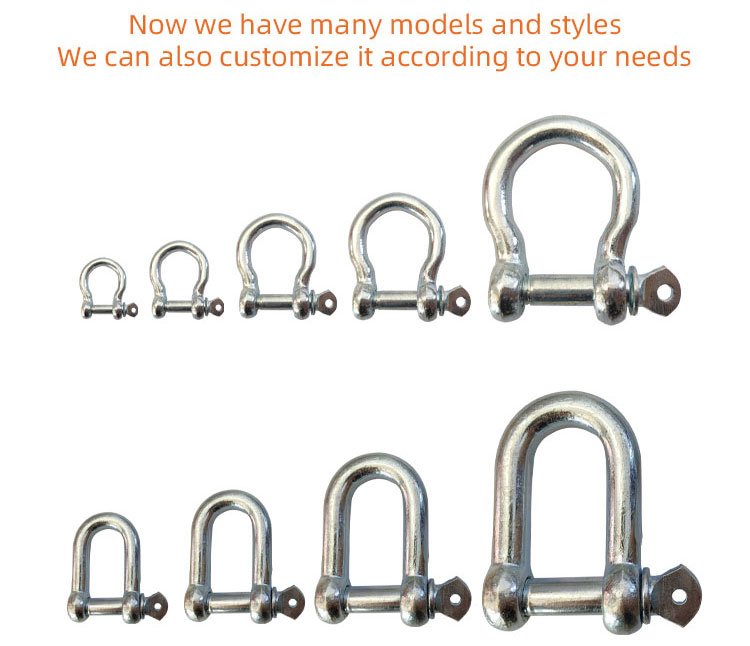

Customize Service

Other Products

Customer Feedback

Packing & Delivery

Company Profile



    Shandong Lisheng Machinery Co., Ltd. is a new generation enterprise committed to the hardware industry. Located in Jining, Shandong Province, the hometown of Confucius and Mencius. Our factory produces hardware products with advanced technology, complete equipment and stable quality, which sell well all over the world.

LOADSTAR

Introducing the LoadStar Rigging Hardware 304 Stainless Steel European Type D Shackles. These shackles is the perfect addition your rigging equipment, providing reliable and durable performance in a number of applications.

Made from top-notch 304 stainless steel these Rigging Hardware 304 Stainless Steel European Type D Shackles were created to withstand possibly the toughest conditions. These are typically resistant to rust and corrosion, ensuring extended use without compromising their power and integrity.

The LoadStar Rigging Hardware 304 Stainless Steel European Type D Shackles were created for simplicity of use and security. The D-shape permits for effortless attachment to an array of objects, and so the screw pin supplies a secure and locking mechanism is effortless. This may make it simple to make utilization of and ensures that your rigging remains securely set up.

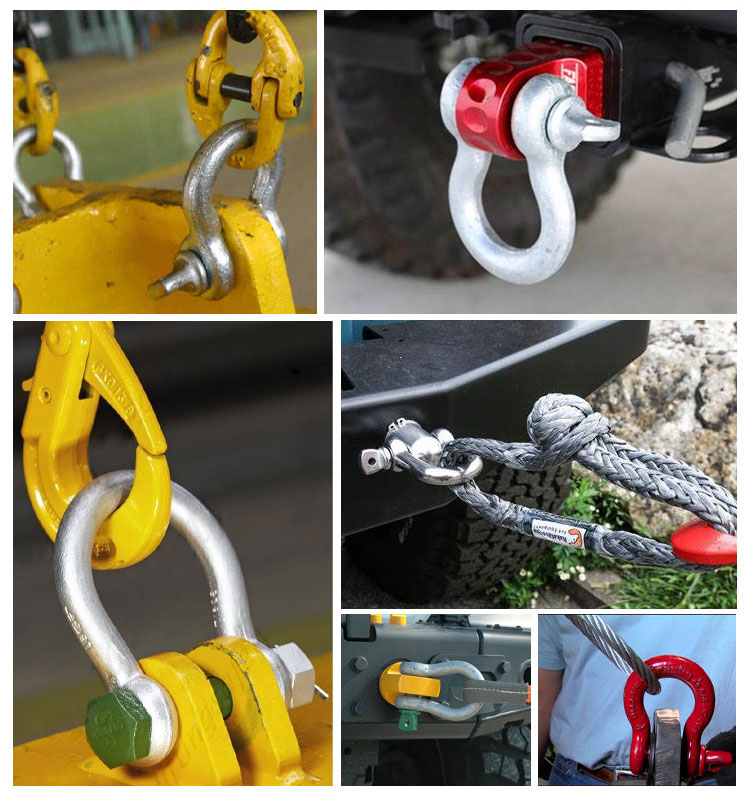

These Rigging Hardware 304 Stainless Steel European Type D Shackles will also be versatile. They've been perfect for usage on ships, trailers, as well as in a selection of industrial and construction applications. They are often used to connect ropes and cables, protected heavy loads and much more.

LoadStar is a trusted brand the rigging industry. With a long period of expertise and experience, they have become a frontrunner in top-quality rigging equipment. Their products or services are well known for their durability, reliability, and gratification, making them your specialists decision that are go-to enthusiasts alike.
